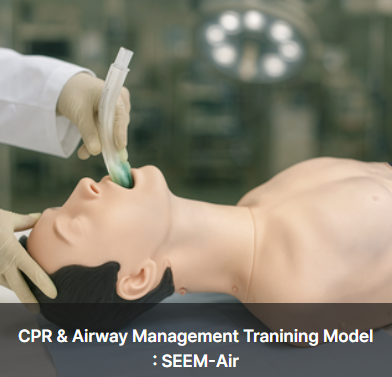

CPR & Airway training model is designed to focus specifically on CPR training, which is a critical life-saving skill. The inclusion of real-time feedback on CPR performance ensures that users receive immediate guidance on how to improve their technique, which can lead to more effective resuscitation efforts.
Airway training in this model provides users with a basic understanding of airway management and how it relates to CPR. This knowledge can be especially important in emergency situations where quick action is necessary.
Chest compression, airway opening, and ventilation practice
Head tilt–Chin lift and Jaw thrust techniques
Bag-Valve-Mask (BVM) ventilation practice
Insertion practice: OPA, NPA, ETT, LMA, i-gel
Visual confirmation of chest rise during ventilation
Safety & Convenience
Warning click sound when excessive force is applied to teeth
Semi-permanent AED pad training with magnetic system
Replaceable facial skin and lung bag for hygiene
Carrying case doubles as training mat
Battery or AC adapter operation
Designed according to ERC 2025 and AHA guidelines
2️⃣ LED Display Features
Real-time feedback on chest compression depth, rate, hands position, and incomplete recoil
Displays total and correct chest compression counts
Displays ventilation volume and number of ventilations
3️⃣ Software Features
Training & Monitoring
Supports up to 6 users simultaneously via Bluetooth
Flexible session setup based on learning objectives
Group management and performance tracking

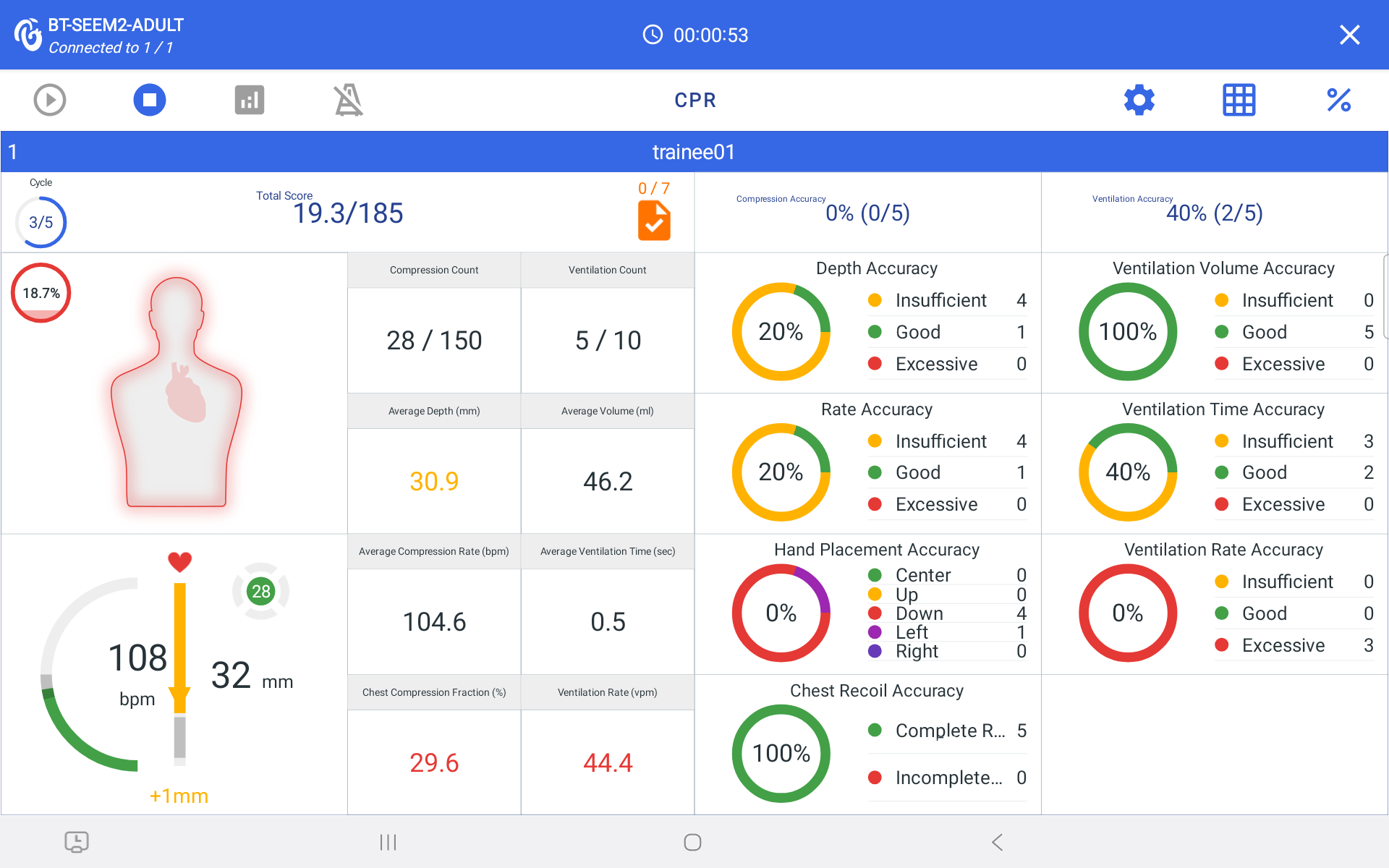

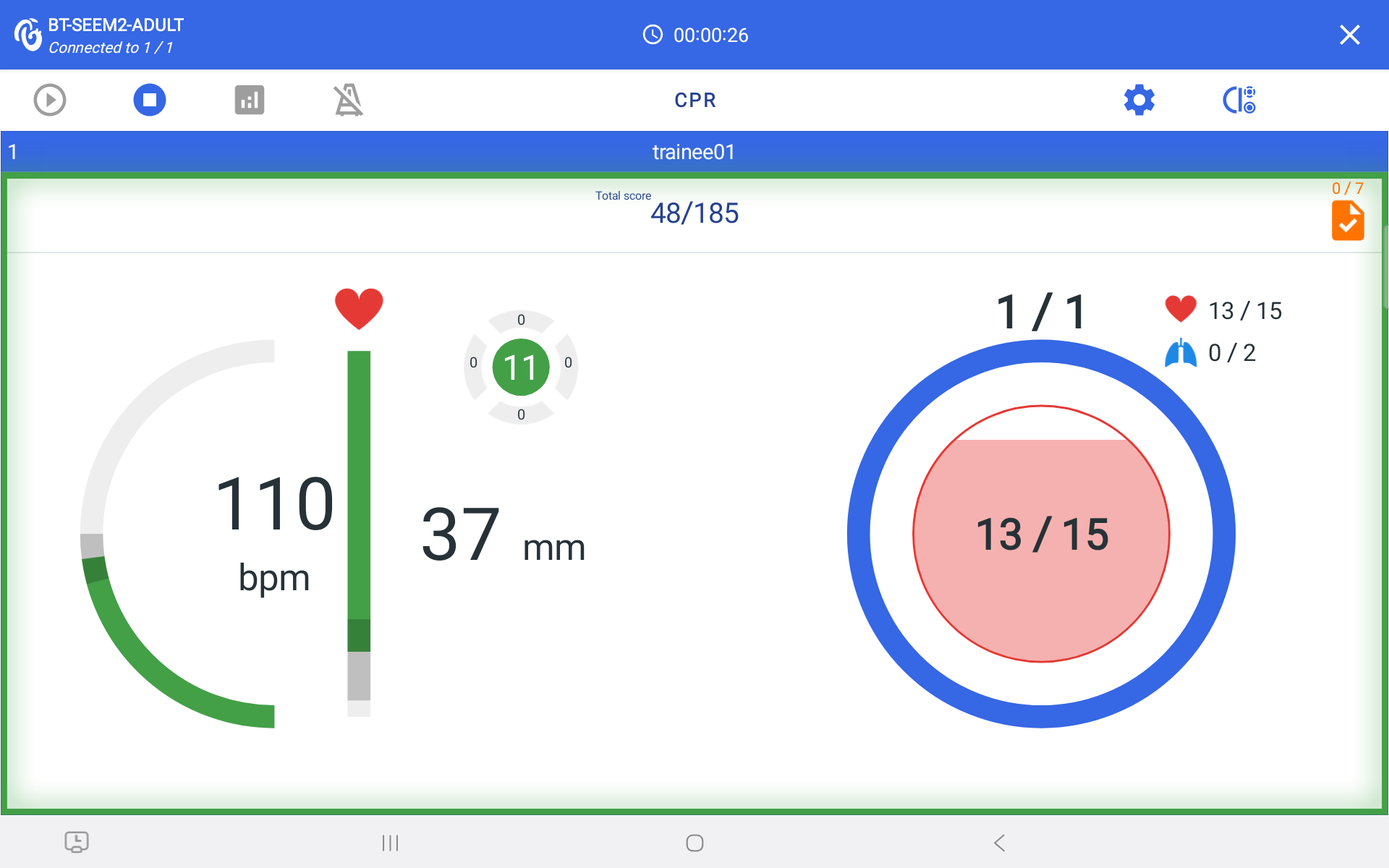

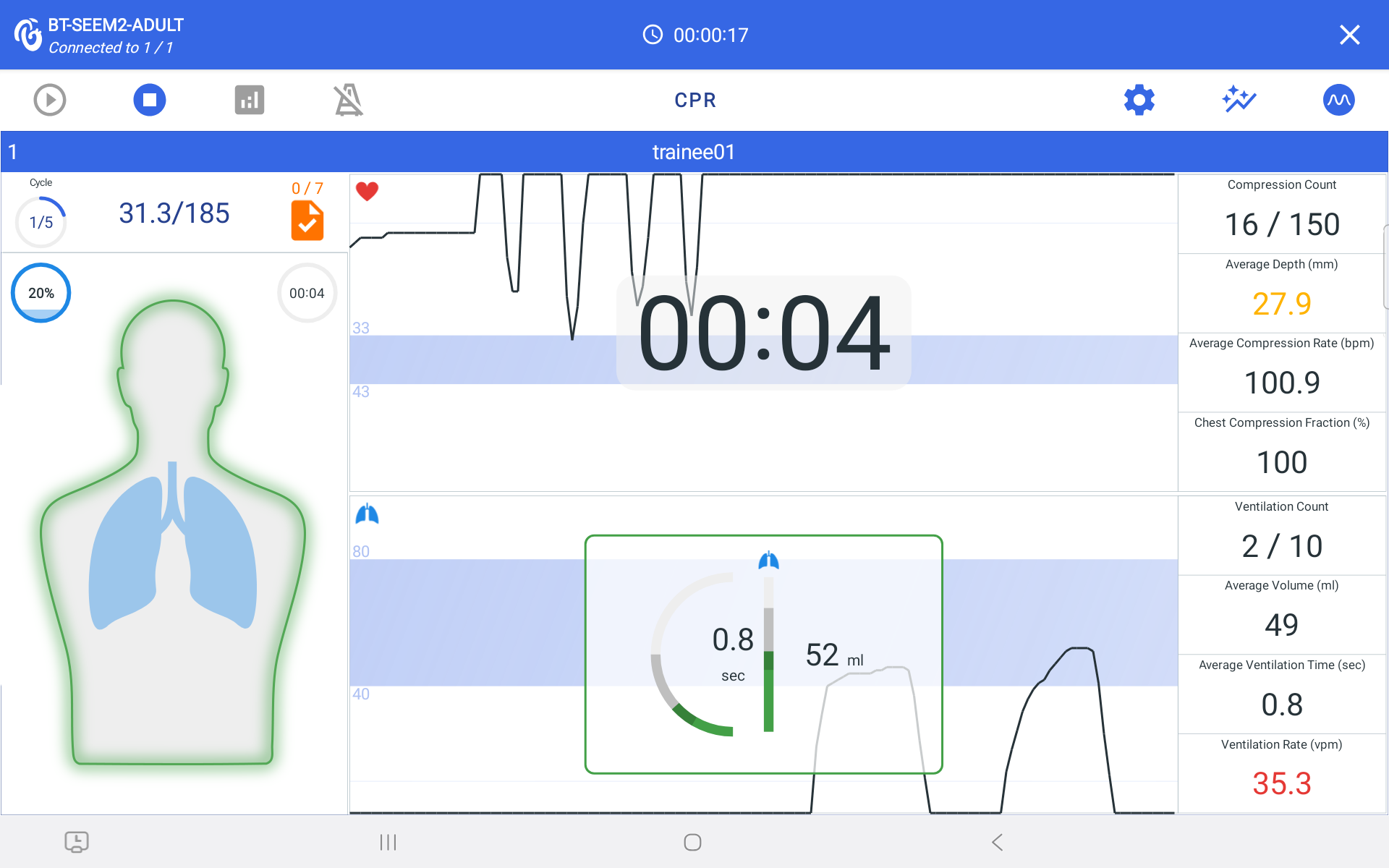

Multiple views: Basic, Graph, Detailed
Modes: Training Mode, Evaluation Mode, Game Mode
Metrics & Evaluation
Displays: compression depth, rate, position, incomplete recoil, pause time, and chest compression fraction
Displays ventilation volume, duration, and ventilations per minute
Create custom checklists and evaluation criteria

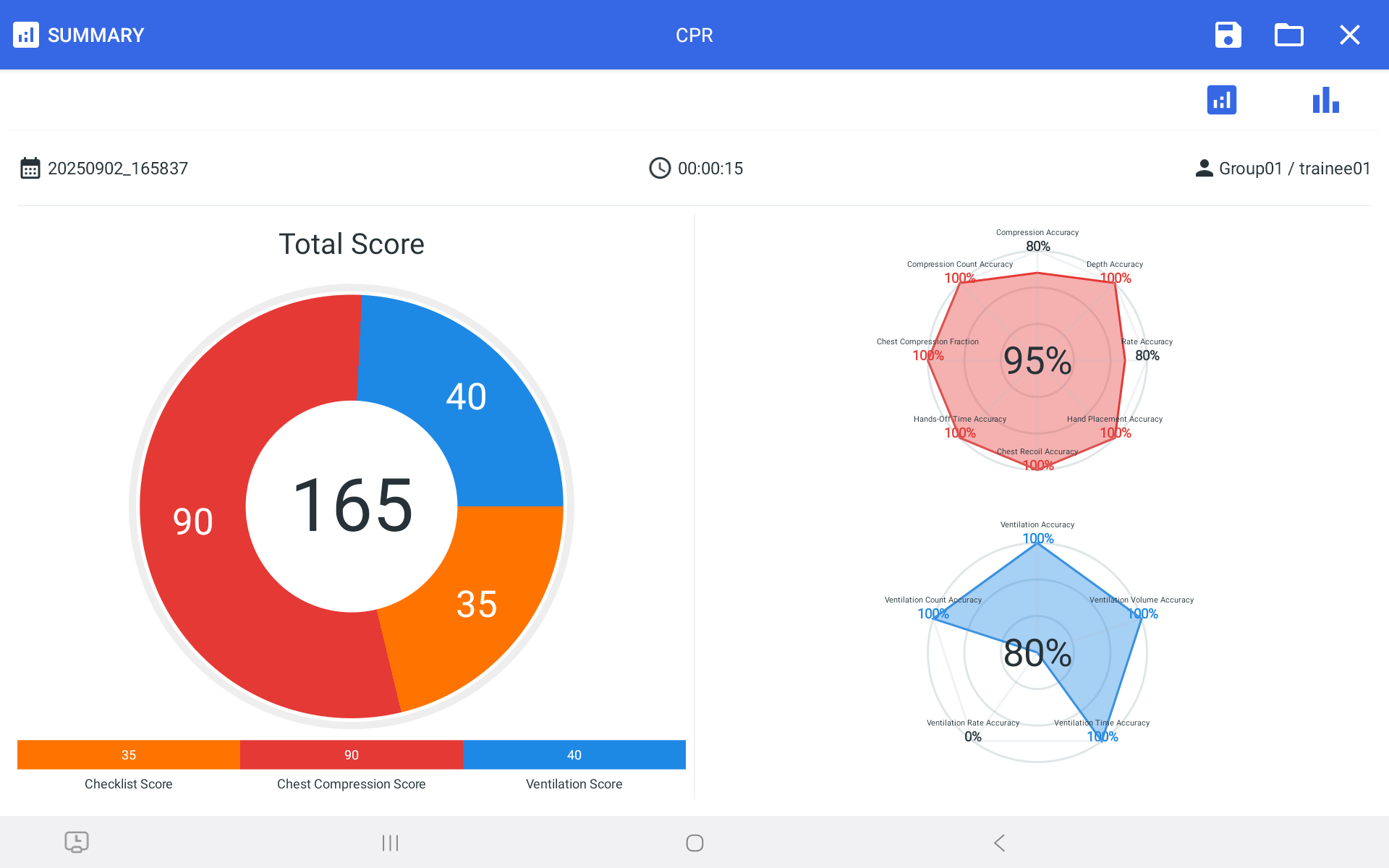

Generate summary and detailed reports in PDF/Excel
Store and compare performance by group or session
Select or change guidelines before each training session
4️⃣ Group Training
Tablet connection: up to 6 manikins
Laptop connection: up to 30 manikins
Monitor performance in real time
5️⃣ Durability & Consumables
Reusable semi-permanent AED pads
Replaceable parts for long-term use:
Airway skin
Chest skin
Lung bag
Upper teeth
Face skin
Cost-effective maintenance for continuous use
Technical Specifications
Feature
Specification
Dimensions
330 × 670 × 210 mm
Weight
6.4 kg
Power
Adapter or C-type batteries
Connectivity
Bluetooth / Wi-Fi
YouTube Tutorial
Note: Clicking the timestamps below will open the video in a new window. To avoid overlapping playback, please pause the video currently playing. Or, if you prefer, just use the timestamps as a guide and skip to approximately the corresponding time on the video above
Optional (sold separately) : Tablet, Power bank
